- 編號：13436669
- 頻率：26MHz
- 尺寸：3225mm
美國Silicon晶體,501JCA26M0000CAGR晶振,無人機型號傳輸晶振
美國Silicon晶體,501JCA26M0000CAGR晶振,無人機型號傳輸晶振,美國Slicon晶振公司，芯科晶振，Si501振蕩器系列為傳統晶體振蕩器提供單片，基于mems的IC替代品。SiliconLaboratories的CMEMS技術將標準CMOS+MEMS結合在單...
.jpg)

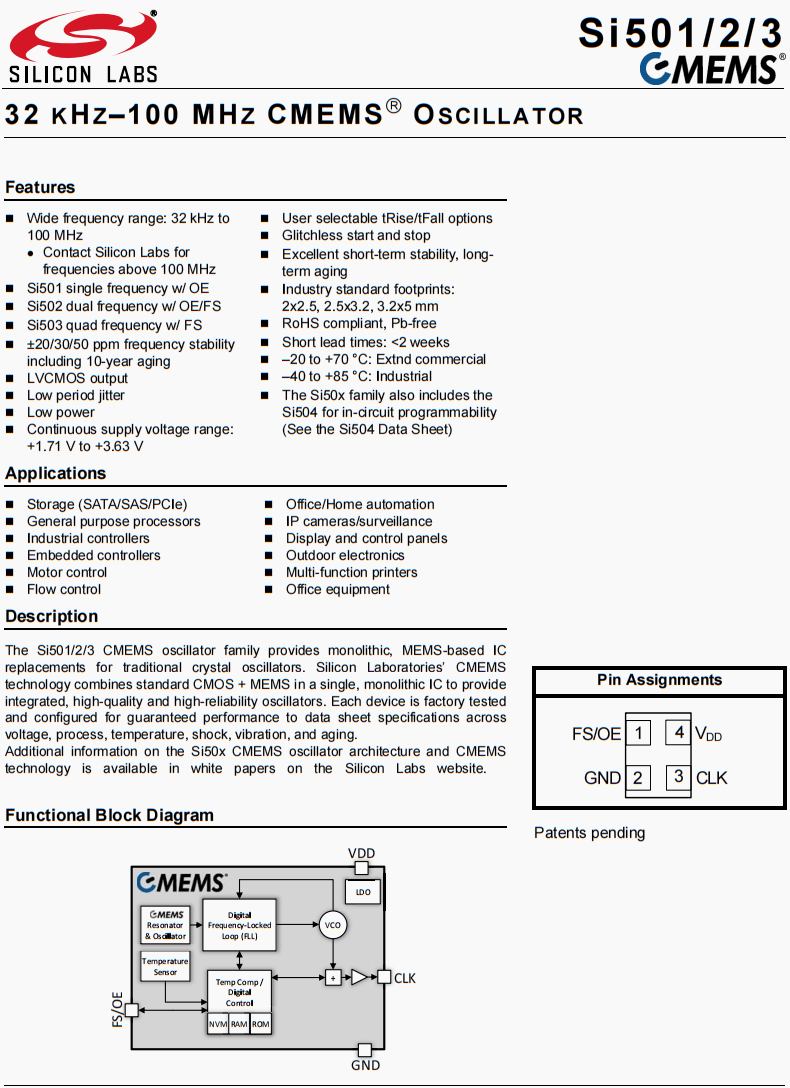

美國Silicon晶體,501JCA26M0000CAGR晶振,無人機型號傳輸晶振,美國Slicon晶振公司，芯科晶振，Si501振蕩器系列為傳統晶體振蕩器提供單片，基于mems的IC替代品。Silicon Laboratories的CMEMS技術將標準CMOS + MEMS結合在單個單片IC中，提供集成，高質量和高可靠性的振蕩器。每個設備都經過工廠測試和配置，以保證性能符合數據表規格，包括電壓，工藝，溫度，沖擊，振動和老化。高品質晶振，低損耗晶振，歐美晶振，遙遙領先晶振，室外6G基站晶振，汽車電子晶振，汽車輔助駕駛晶振，高精度晶振，3225晶振，小體積晶振，MEMS晶振，貼片晶振，
.gif)
美國Silicon晶體,501JCA26M0000CAGR晶振,無人機型號傳輸晶振
.gif)
美國Silicon晶體,501JCA26M0000CAGR晶振,無人機型號傳輸晶振
.gif)
| 參數 | 標志 | 試驗條件 | 最小值 | 典型的 | 最大值 | 單位 |
| 頻率范圍 | CLK | 0.032 | — | 100 | MHz | |
| 時鐘周期 | CLK | 1/FCLK | 31,250 | — | 10 | ns |
| 總穩定性 | STAB | –20 | — | +20 | ppm | |
| –30 | — | +30 | ppm | |||
| –50 | — | +50 | ppm | |||
| 初始精度 | F | Measured at 25 ?C at the time of shipping | — | ±2 | — | ppm |
| 啟動時間 | SU | From VDD crossing 1.71 V to first clock output | — | 2.5 | 4 | ms |
| 回復時間 | RUN | From Sleep mode | — | 2.5 | 5 | ms |
| From Doze mode | — | 1.7 | 2.55 | ms | ||
| From Stop mode5 | — | — | 1.5 x TCLK + 35 | ns | ||
| 輸出禁用時間 | TD | To Sleep/Doze mode, from output running | — | — | 225 | µs |
| To Stop, from output running | — | — | 1.5 x TCLK + 35 | ns | ||
| 頻率更新時間 | NEW_FREQ | — | — | 5 | ms |
美國Silicon晶體,501JCA26M0000CAGR晶振,無人機型號傳輸晶振
| Silicon原廠編碼 | 生產商品牌 | 頻率 | 輸出 | 電源電壓 | 頻率穩定度 | 工作溫度 |
| 501AAA27M0000DAF | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±50ppm | -20°C ~ 70°C |
| 501AAA27M0000DAG | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±50ppm | -40°C ~ 85°C |
| 501JAA24M0000DAF | Silicon Labs | 24 MHz | LVCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| 501AAA27M0000CAF | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±50ppm | -20°C ~ 70°C |
| 501JAA40M0000CAF | Silicon Labs | 40 MHz | LVCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| 501JAA25M0000BAF | Silicon Labs | 25 MHz | LVCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| 501HCA27M0000DAF | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
| 501BCA16M0000BAF | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| 501AAA24M0000BAG | Silicon Labs | 24 MHz | LVCMOS | 1.7V ~ 3.6V | ±50ppm | -40°C ~ 85°C |
| 501AAA27M0000BAG | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±50ppm | -40°C ~ 85°C |
| 501JAA24M0000BAG | Silicon Labs | 24 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 501JAA40M0000BAG | Silicon Labs | 40 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 501ACA10M0000BAF | Silicon Labs | 10 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
| 501JAA25M0000BAG | Silicon Labs | 25 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 501HCA27M0000BAF | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
| 501HCA27M0000DAG | Silicon Labs | 27 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
| 501BCAM032768BAF | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| 501BCAM032768BAG | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 501BCAM032768CAF | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| 501BCAM032768CAG | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 501BCAM032768DAF | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| 501BCAM032768DAG | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 501JCAM032768BAF | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| 501JCAM032768BAG | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 501JCAM032768CAF | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| 501JCAM032768CAG | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 501JCAM032768DAF | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| 501JCAM032768DAG | Silicon Labs | 32.768 kHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 501HCAM032768BAF | Silicon Labs | 32.768 kHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
| 501HCAM032768BAG | Silicon Labs | 32.768 kHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
| 501HCAM032768CAF | Silicon Labs | 32.768 kHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
| 501HCAM032768CAG | Silicon Labs | 32.768 kHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
| 501HCAM032768DAF | Silicon Labs | 32.768 kHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
| 501HCAM032768DAG | Silicon Labs | 32.768 kHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
| 501ABA8M00000BAF | Silicon Labs | 8 MHz | LVCMOS | 1.7V ~ 3.6V | ±30ppm | -20°C ~ 70°C |
| 501ABA8M00000BAG | Silicon Labs | 8 MHz | LVCMOS | 1.7V ~ 3.6V | ±30ppm | -40°C ~ 85°C |
| 501ABA8M00000CAF | Silicon Labs | 8 MHz | LVCMOS | 1.7V ~ 3.6V | ±30ppm | -20°C ~ 70°C |
| 501ABA8M00000CAG | Silicon Labs | 8 MHz | LVCMOS | 1.7V ~ 3.6V | ±30ppm | -40°C ~ 85°C |
| 501ABA8M00000DAF | Silicon Labs | 8 MHz | LVCMOS | 1.7V ~ 3.6V | ±30ppm | -20°C ~ 70°C |
| 501ABA8M00000DAG | Silicon Labs | 8 MHz | LVCMOS | 1.7V ~ 3.6V | ±30ppm | -40°C ~ 85°C |
| 501ACA10M0000BAG | Silicon Labs | 10 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
| 501ACA10M0000CAF | Silicon Labs | 10 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
| 501ACA10M0000CAG | Silicon Labs | 10 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
| 501ACA10M0000DAF | Silicon Labs | 10 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
| 501ACA10M0000DAG | Silicon Labs | 10 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
| 501JCA10M0000BAF | Silicon Labs | 10 MHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| 501JCA10M0000BAG | Silicon Labs | 10 MHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 501JCA10M0000CAF | Silicon Labs | 10 MHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| 501JCA10M0000CAG | Silicon Labs | 10 MHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 501JCA10M0000DAF | Silicon Labs | 10 MHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| 501JCA10M0000DAG | Silicon Labs | 10 MHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 501HCA12M0000BAF | Silicon Labs | 12 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
| 501HCA12M0000BAG | Silicon Labs | 12 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
| 501HCA12M0000CAF | Silicon Labs | 12 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
| 501HCA12M0000CAG | Silicon Labs | 12 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
| 501HCA12M0000DAF | Silicon Labs | 12 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -20°C ~ 70°C |
| 501HCA12M0000DAG | Silicon Labs | 12 MHz | LVCMOS | 1.7V ~ 3.6V | ±20ppm | -40°C ~ 85°C |
| 501BCA16M0000BAG | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 501BCA16M0000CAF | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| 501BCA16M0000CAG | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 501BCA16M0000DAF | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±20ppm | -20°C ~ 70°C |
| 501BCA16M0000DAG | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 501BAA16M0000BAF | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
| 501BAA16M0000BAG | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 501BAA16M0000CAF | Silicon Labs | 16 MHz | LVCMOS | 3.3V | ±50ppm | -20°C ~ 70°C |
