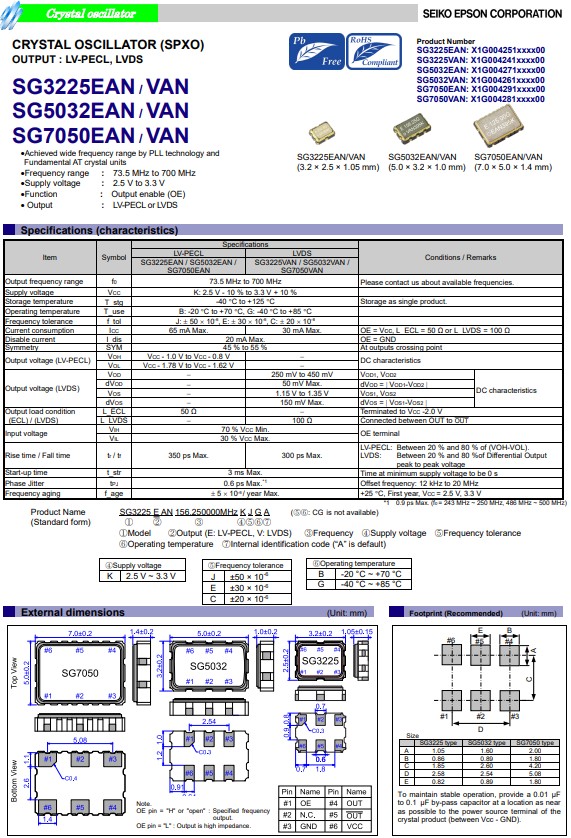

愛普生晶振SG5032VAN，是一款LVDS差分晶體振蕩器，六腳貼片晶振，具備高精度、高穩定材料特征的小型晶體振蕩單元與最佳搭配設計的小型鎖相環電路相組合，成功推出了差分輸出PLL石英晶體振蕩器。推出市場需求較多的5.0×3.2mm尺寸滿足小型化設備的需求。通過使用PLL技術和AT晶體單元來實現73.5MHz ~700MHz頻率范圍的高頻率范圍。通過輸出差分信號，得到更高的晶振性能。
愛普生SG5032VAN應用于5G無線模塊晶振的LVDS差分晶體振蕩器,X1G004261002300,石英晶體振蕩器

產品編碼	型號	頻率	差分晶振	輸出波
X1G004261000100	SG5032VAN	100.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261000200	SG5032VAN	125.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261000500	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261000600	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS
X1G004261001100	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS
X1G004261001300	SG5032VAN	150.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261001400	SG5032VAN	155.520000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002000	SG5032VAN	125.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002100	SG5032VAN	125.006250MHz	5.00x3.20x1.20mm	LVDS
X1G004261002300	SG5032VAN	100.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002400	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002500	SG5032VAN	400.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261002900	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS
X1G004261003100	SG5032VAN	150.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261003300	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS
X1G004261003400	SG5032VAN	312.500000MHz	5.00x3.20x1.20mm	LVDS
X1G004261004300	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261006200	SG5032VAN	200.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261006700	SG5032VAN	148.500000MHz	5.00x3.20x1.20mm	LVDS

X1G004261006900	SG5032VAN	150.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261007100	SG5032VAN	156.250000MHz	5.00x3.20x1.20mm	LVDS
X1G004261010200	SG5032VAN	250.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261010700	SG5032VAN	153.600000MHz	5.00x3.20x1.20mm	LVDS
X1G004261011400	SG5032VAN	78.125000MHz	5.00x3.20x1.20mm	LVDS
X1G004261011900	SG5032VAN	120.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261012100	SG5032VAN	644.531250MHz	5.00x3.20x1.20mm	LVDS
X1G004261012500	SG5032VAN	148.351600MHz	5.00x3.20x1.20mm	LVDS
X1G004261012600	SG5032VAN	133.333300MHz	5.00x3.20x1.20mm	LVDS
X1G004261012800	SG5032VAN	250.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261012900	SG5032VAN	135.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261013100	SG5032VAN	322.265625MHz	5.00x3.20x1.20mm	LVDS
X1G004261013300	SG5032VAN	230.000000MHz	5.00x3.20x1.20mm	LVDS
X1G004261013500	SG5032VAN	148.351600MHz	5.00x3.20x1.20mm	LVDS
X1G004261013600	SG5032VAN	644.531250MHz	5.00x3.20x1.20mm	LVDS
X1G004261013800	SG5032VAN	148.351600MHz	5.00x3.20x1.20mm	LVDS
X1G004261014100	SG5032VAN	161.132812MHz	5.00x3.20x1.20mm	LVDS
X1G004261014300	SG5032VAN	625.000000MHz	5.00x3.20x1.20mm	LVDS

愛普生SG5032VAN應用于5G無線模塊晶振的LVDS差分晶體振蕩器,X1G004261002300,石英晶體振蕩器

SG5032VAN差分石英晶振具有低電平，低抖動，低功耗，低損耗等特性。差分晶振作為目前行業中高要求、高技術石英晶體振蕩器，具有相位低、損耗低的特點。因此也被稱之為:低抖動振蕩器，低抖動石英晶振，低相位晶振，低損耗晶振。其優勢具有：

① 能夠很容易地識別小信號。

② 對外部電磁干擾(EMI)是高度免疫的。

③ 能夠從容精確地處理'雙極'信號
由于許多高性能的協議使用差分信號，故而差分晶振廣泛應用于5G通訊設備、機頂盒、光端機、安防設備、路由器/交換機、儀器儀表、SATA，SAS，光纖通信，10G以太網及各種頻率控制設備上。
